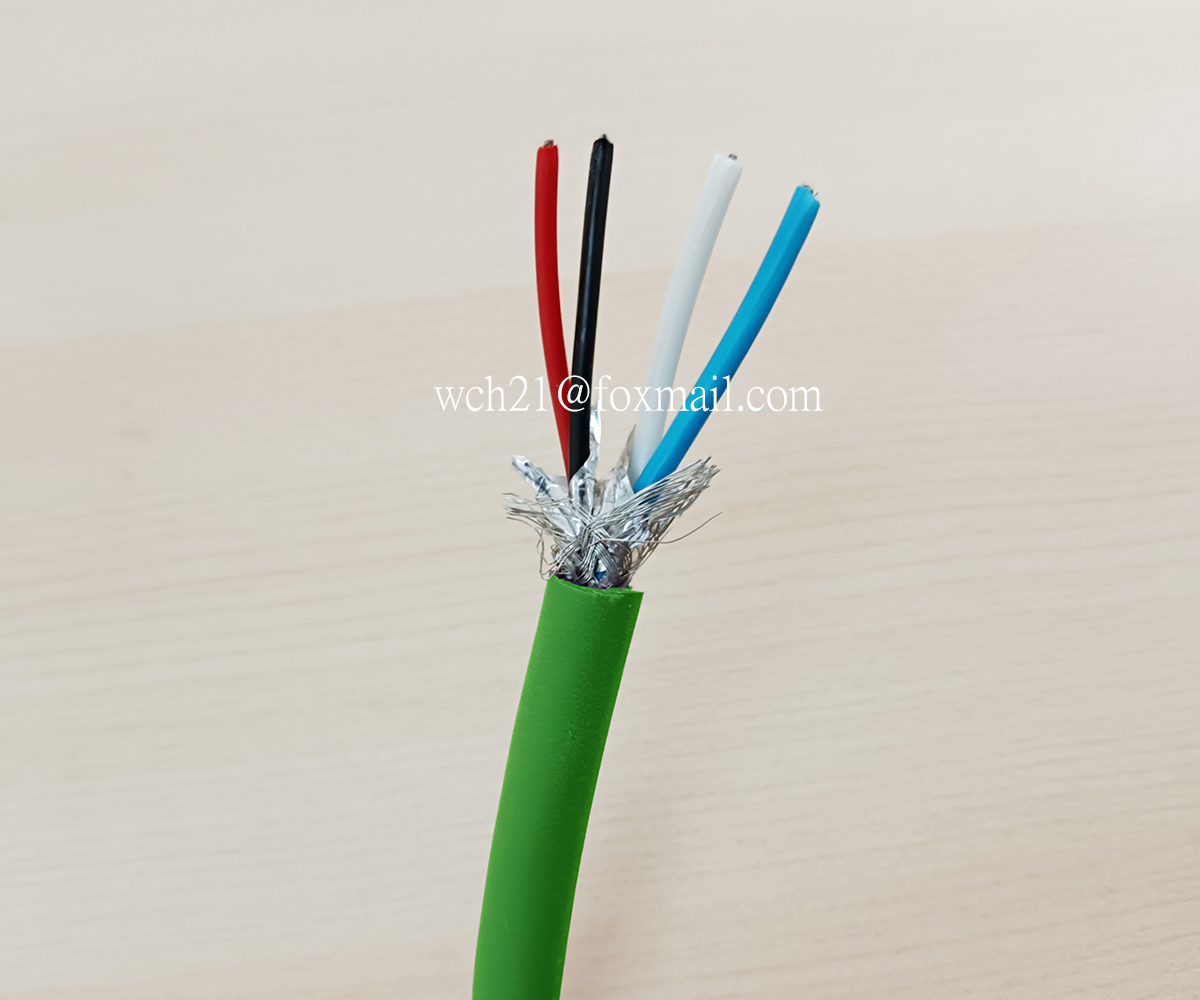

Style Number | Temperature Rating | Voltage Rating | Cold Resistance | Halogen Content |
UL21455 | 80˚C | 30V | -50˚C | Zero |
Construction Details
Conductor Material: TC – tinned copper.
Insulation: AWM verified material.
Shield: foil shield, braiding, copper strands wrapped, optional as per request.
Outer Jacket: Modified Polyphenylene Ether-PE, MPPE-PE.
Technical Parameters
//
Physical Properties
Smaller configuration and lighter weight to have the better performance.
Capable of handling the extreme cold temperature.
Bending radius: 10X cable diameter
Suitable for wiring in electronic equipment.
Reference Standard
UL Standard: UL758, UL
AWM Compliance: AWM
European Directive: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
