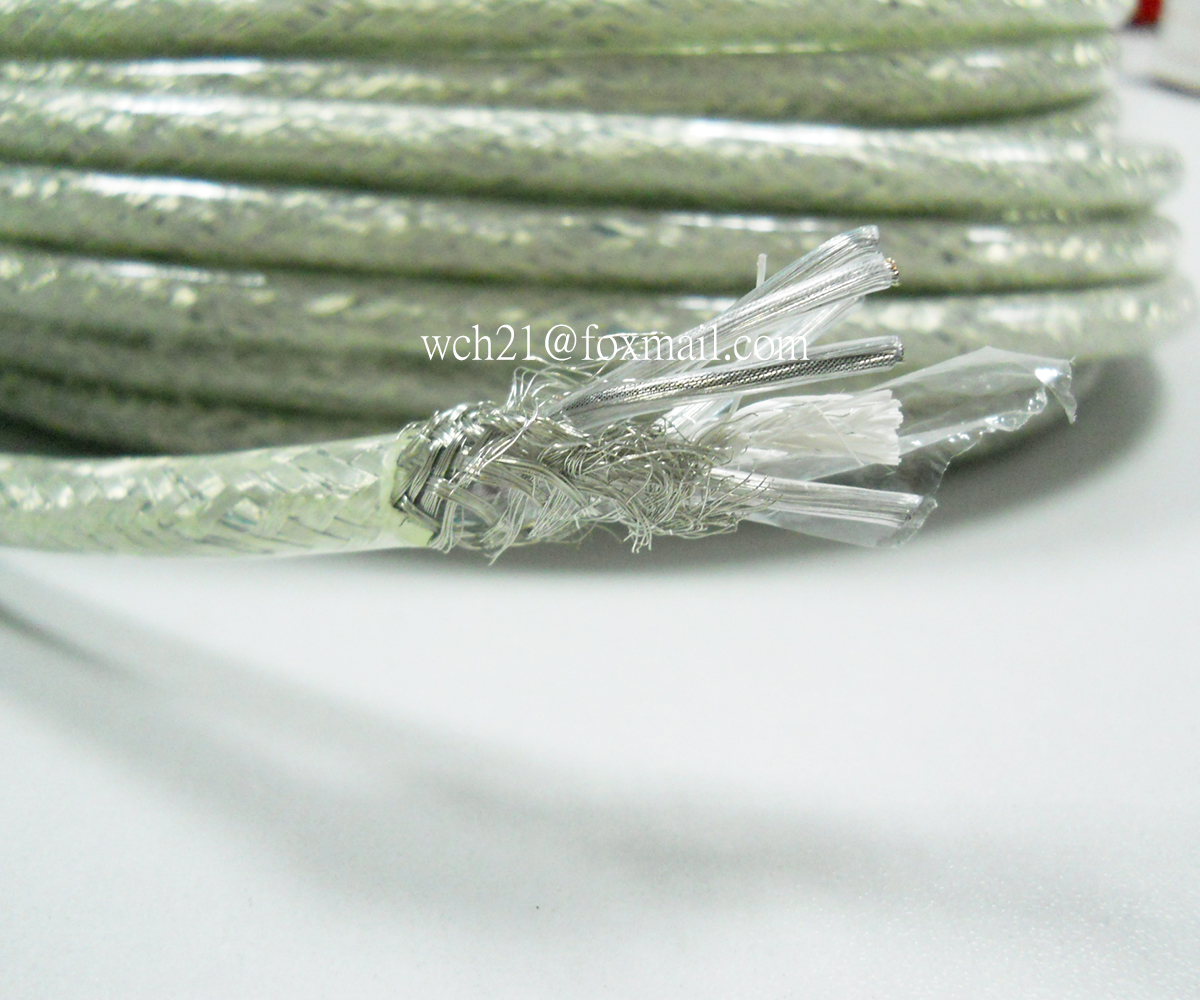

UL2517
UL2517 is PVC sheathed cable with 105 deg C and VW-1 flame grade. It has pure copper strands as conductor to ensure the excellent electric performance.
| Style Number | Temperature Rating | Voltage Rating | Dielectric Strength | Fire Rating |
| UL2517 | 105˚C | 300V | 500V (AC/1min) | VW-1 |
Construction Details
Conductor Material: TC – tinned copper.
Insulation: AWM verified material.
Shield: foil shield, braiding, copper strands wrapped, optional as per request.
Outer Jacket: Polyvinyl Chloride PVC.
Technical Parameters
| UL2517 | Gauge | Conductor | Insulation Thickness |
Insulation Thickness | Shield Coverage | Jacket Thickness | Overall Diameter |
Conductor Resistance |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/km | |
| 2C | 30 | 7/0.100 | 0.41 | 1.10 | ≥65 | 0.76 | 4.40 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | ≥65 | 0.76 | 4.50 | 239.00 | |
| 26 | 7/0.16 | 0.41 | 1.30 | ≥65 | 0.76 | 4.80 | 150.00 | |
| 24 | 11/0.16 | 0.41 | 1.40 | ≥65 | 0.76 | 5.00 | 94.20 | |
| 22 | 17/0.16 | 0.43 | 1.60 | ≥65 | 0.76 | 5.40 | 59.40 | |
| 20 | 21/0.178 | 0.41 | 1.80 | ≥65 | 0.76 | 5.80 | 36.70 | |
| 18 | 34/0.178 | 0.41 | 2.10 | ≥65 | 0.76 | 6.40 | 23.20 | |
| 16 | 26/0.25 | 0.41 | 2.40 | ≥65 | 0.76 | 7.00 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.41 | 1.10 | ≥65 | 0.76 | 4.60 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | ≥65 | 0.76 | 4.80 | 239.00 | |
| 26 | 7/0.16 | 0.41 | 1.30 | ≥65 | 0.76 | 5.00 | 150.00 | |
| 24 | 11/0.16 | 0.41 | 1.40 | ≥65 | 0.76 | 5.20 | 94.20 | |
| 22 | 17/0.16 | 0.41 | 1.60 | ≥65 | 0.76 | 5.60 | 59.40 | |
| 20 | 21/0.178 | 0.41 | 1.80 | ≥65 | 0.76 | 6.00 | 36.70 | |
| 18 | 34/0.178 | 0.41 | 2.10 | ≥65 | 0.76 | 6.70 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.41 | 1.10 | ≥65 | 0.76 | 4.80 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | ≥65 | 0.76 | 5.00 | 239.00 | |
| 26 | 7/0.16 | 0.41 | 1.30 | ≥65 | 0.76 | 5.30 | 150.00 | |
| 24 | 11/0.16 | 0.41 | 1.40 | ≥65 | 0.76 | 5.60 | 94.20 | |
| 22 | 17/0.16 | 0.41 | 1.60 | ≥65 | 0.76 | 6.00 | 59.40 | |
| 20 | 21/0.178 | 0.41 | 1.80 | ≥65 | 0.76 | 6.50 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.41 | 1.10 | ≥65 | 0.76 | 5.20 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | ≥65 | 0.76 | 5.40 | 239.00 | |
| 26 | 7/0.16 | 0.41 | 1.30 | ≥65 | 0.76 | 5.70 | 150.00 | |
| 24 | 11/0.16 | 0.41 | 1.40 | ≥65 | 0.76 | 6.00 | 94.20 | |
| 22 | 17/0.16 | 0.41 | 1.60 | ≥65 | 0.76 | 6.50 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.41 | 1.10 | ≥65 | 0.76 | 5.50 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | ≥65 | 0.76 | 5.80 | 239.00 | |
| 26 | 7/0.16 | 0.41 | 1.30 | ≥65 | 0.76 | 6.00 | 150.00 | |
| 24 | 11/0.16 | 0.41 | 1.40 | ≥65 | 0.76 | 6.40 | 94.20 |
Physical Properties
Aging Temperature: 113℃±2℃
Aging Period: 168HR
Tensile Strength after Aging: min 70%
Elongation after Aging: min 65%
Testing Temperature: 121℃±2℃
Testing Period: 1HR (60minutes)
Deformation: ≤50%
Testing Temperature: 121℃±2℃
Testing Period: 1HR (60minutes)
Heat Shock: No Crack
Testing Temperature: -10℃±2℃
Testing Period: 1HR (60minutes)
Cold Bend: No Crack
Bend Radius: 10X cable diameter
Reference Standard
UL Standard: UL758, UL2517
AWM Compliance: AWM
European Directive: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
